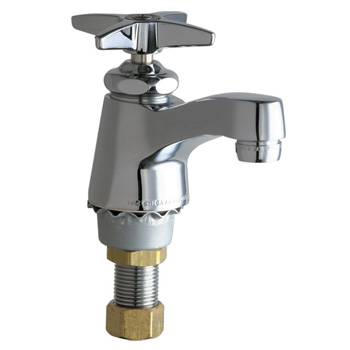

700-COLDAB Chicago Faucets Single Supply Cold Water Basin Faucet with Cross Handle - Single Hole Installation
- Single supply faucet - for use in cold water applications
- Manufactured and assembled in the United States of America
- Faucet body and handles are covered under Chicago Faucet's limited lifetime warranty
- Constructed of solid brass ECAST material
- High quality chrome plated finish - finishes are covered under warranty for a year
- Single handle operation
- Quaturn compression operating cartridge - covered under warranty for 5 years
- Low lead compliant - meeting federal and state regulations for lead content
- All mounting hardware is included with faucet
- Overall Height: 3-3/8" (measured from mounting surface to highest point on faucet)
- Spout Height: 1-3/8" (measured from mounting surface to spout outlet)
- Spout Reach: 3-3/8" (measured from center of faucet body to center of spout outlet)
- Required Installation Holes: 1
- Flow Rate: 0.5 GPM (gallons-per-minute)
- Maximum Deck Thickness: 2-3/8" (cannot install on decks thicker without extention kit)
- Rated Operating Pressure: 20 - 125 PSI
- Rated Operating Temperature: 40 - 140 degrees Fahrenheit
- 1 Cross handle included with faucet
- 1/2" and 3/8" connection - designed for use with standard U.S. plumbing supply bibs
- ASME A112.18.1/CSA B125.1
- Certified to NSF/ANSI 61, Section 9 by CSA
